Flo Trend® has been in the filtration and solids/liquids business for over twenty five years. We offer a wide range of dewatering products to an extensive customer base in the oil and gas, industrial, municipal and environmental industries. The company website www.flotrend.com will provide in-depth answers for your questions regarding centrifuges, flo vac pumps, bag filters and bag filter vessels, cartridge filter vessels, the power pac filter press, slurry tank, liquid filtration, wastewater filtering, waste water treatment, liquid clarity, eductors, flo jet mixers, the Mix Mate, jet hopper, fluid entrainment, oil recovery, lead remediation, blending, engineering, soil washing, hydrocarbon recovery, blending (through custom blending units), as well as oilfield and food industry concerns.
Martin’s Sanitation Service owns and operates all the necessary equipment to clean aerobic and anaerobic digesters as well as other sludge holding tanks. Through the use of various pumps and dewatering equipment, we can dewater the contents of the tank(s) into a high solids filter cake for reduced disposal costs. With our experience in choosing the proper equipment and handling methods, we can have your digesters back in line quickly.
We are the dewatering specialist that you have been looking for. Due to our experience in pumping sediments from wastewater lagoons and then dewatering them is our specialty. We utilize large props to mix the lagoon and then pump the waste to a polymer mixing and injection system designed for feeding the solids to the dewatering equipment. Because this type of dewatering does not require the lagoon be taken out of service, this method of cleaning is preferred by many of our customers.
The Roll-Off Style Container Filter is a patented, economical, one-step method for separating and dewatering sludges, slurries and waste streams. The material can be pumped or conveyed by other means into the roll-off container filter for liquid / solid separation. Liquid drains through the installed filter media panels and out of the container via discharge ports.
The purpose for separation may be to:
Some Roll Off Container Filter Applications Include:
The simple design of the Roll Off Container Filter consists of three components:
Application & Performance of Belt Filter Press
Belt Filter Press is often applied in wastewater treatment plant sludge dewatering process and it is one of the most cost effective options regardless of the type of sludge feed into the systems. There are several combined processes added into one unit and it involves different applications such as chemical conditioning, gravity drainage and mechanical shearing and compression effect to remove water and dry up the sludge. Today, belt filter presses are widely used and it has become a standard for general wastewater sludge application and thus, learning how to optimize and use it to your advantage is very important.
Chemical conditioning process is the first step that is used to treat the sludge by adding polymer so that it is well-prepared for the later stage. Usually the chemical agent will bind and coagulate the sludge into thicker and easier to handle larger cake size. The conditioned sludge which are now added with chemicals will then be fed into the gravity drainage section whereby this is the most important step that allows the sludge to thicken further. Most of the water is removed during this step and in certain models designed by different manufacturers, some of it will come complete with vacuum utility that allows more water to be drained off compared to conventional unit and during this process it also helps to remove odor as well.

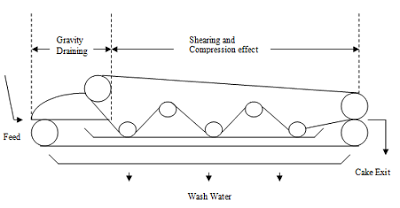

After the draining stage, sludge will then be transferred and pass through conveyor belt driven by sets of rollers that apply shearing effect combined with low and then high pressure sections to squeeze out the final drops of water to make the sludge becomes drier. The final sludge cake will then be removed from the belts using mechanical scrapper blades and then exit from the system. To get a better idea on how the whole operation works starting from the feed until the end, let’s look at the diagram above. As you can see, sludge will travel through a series of water removal stages and the drained out filtrate will collect at the bottom while the sludge cake will be sent to the collection bin for disposal.
System and operation wise, efficiency of a belt filter press can be further enhanced by adding supporting utilities such as accurate polymer dosing pumps, high capacity sludge feed pumps and high performance conveyor belt system that can last through the shearing effect and stress thus reducing replacement costs. Certain types and models however, did not require installation of conditioning tank and thus chemical dosing pumps just like in a DAF system will play an important role over here. There are different variables that can affect the performance of the whole system. Depending on the incoming sludge characteristics, generally the thicker and more concentrated the feed, this will result in improved cake dryness. Apart from that, the belt size, porosity and width should not be neglected as all these will also play an important role towards enhanced operations.
So far, calculating and determining capacity load on how much sludge a belt filter press can handle is very important and selection of the right unit to match your incoming feed will help to synchronize all processes together. For example, a wastewater treatment plant that produces a certain fixed volume measured in gallons per day with certain percentage of concentrated solids will require determining the number and size of belts (from 0.5 up to 3.0 meter) to generate the expected solid captures.
